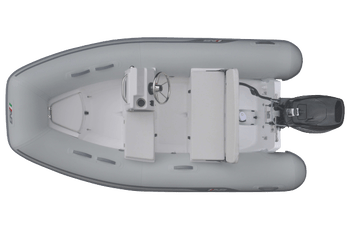

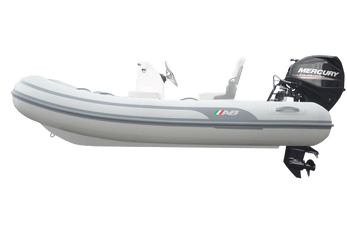

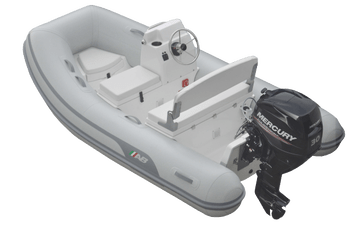

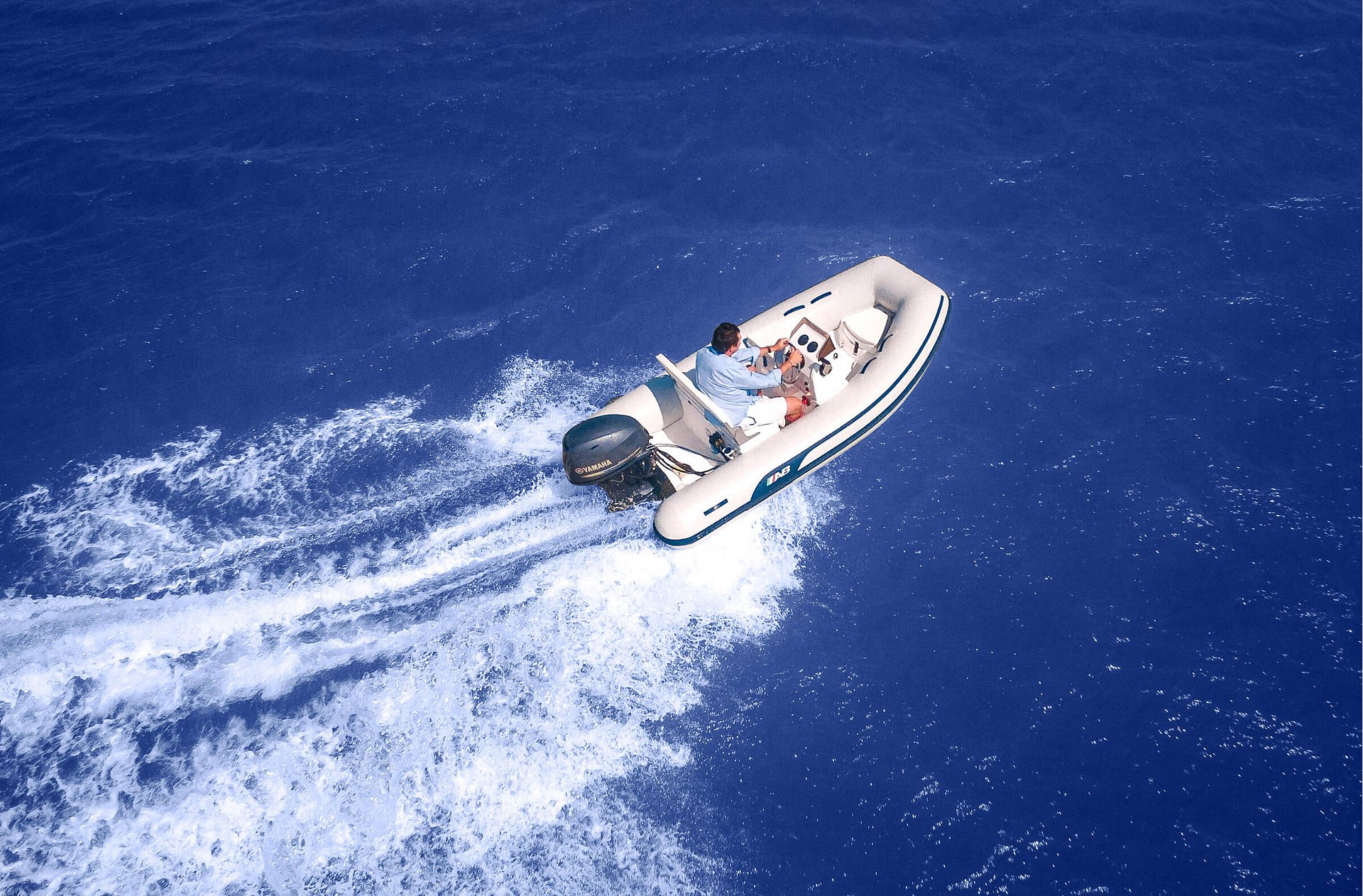

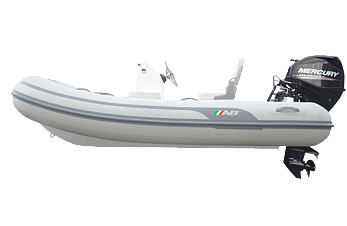

AB Mares 10 VSX

Whether you are looking to explore the local waters, secluded fishing spots, or just looking for a fun night out on the town, our Mares 10 VSX console tender is the way to go. It offers comfortable and convenient seating positions for a relaxing boating day.

Standard Features

Hand Laid Fibreglass Deep “V” Hull

Stringer System Laminated into Hull

Diamond Shape Non-skid Deck

Plastic External Transom Plate

Aluminum Internal Transom Plate

1 Front & 2 Side Orca (CSM) Fabric Handles on Tubes

1 Port Inside Transom Orca (CSM) Fabric Handles on Tubes

2 Inside Bow Sets of Double Orca (CSM) Fabric Handles on Tubes

Raised Single Rub Rail

Push Push Plastic Non-Corrosive 2 Stage Inflation Valves

Orca (CSM) Five Layer Coated Hypalon Fabric

Hand Pump

Maintenance Kit

Owner's Manual

Closed Cell Foam Upholstery

New Integrated Fibreglass Console with Cupholder & Lateral Seat with Cushion

Foldable Console

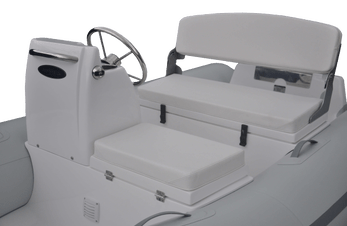

Integrated Stern Seat with Storage

2 Deck Drain

Bow Locker/Seat

Bow Hatch Cushion

Console Front Access Lid

LED Navigation Side Lights

360° White Light Navigation Pole

4 Stainless Steel Davit Lifting Points

Stainless Steel Bow Eye

Stainless Steel Tow Rings & Tie Downs

Stainless Steel Console Grab Rail

Hull Drain with Plug

2 Waterproof Rocker Switches with Circuit Breakers

Battery Box

Battery Switch

Fuel and Water Separator Filter

Automatic Bilge Pump 500 GPH

Mechanical Steering System

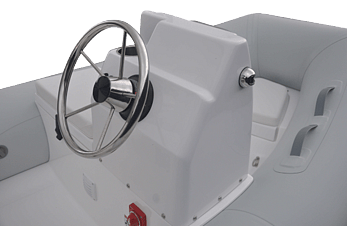

Stainless Steel Steering Wheel

Complete Tin Wiring & Heat Shrink Sealed Terminals

3 Layers Reinforced Seams

Specifications

Overall Length - 10' 6" / 3.19m

Overall Beam - 5' 7" / 1.72m

Inside Length - 7' 7" / 2.31m

Inside Beam - 2' 8" / 0.81m

Tube Diameter - 17" / 0.43m

Number of Chambers - 3

Person Capacity - 4

Weight - 287lbs / 130kg

Recommended HP - 25HP

Maximum HP - 30HP

Shaft Length - 15’’ - 20" / 38.1cm - 50.8cm

RDC Design Category - C

Please note photos are indicative only and may show additions not included in standard features.

Errors and omissions excepted. Packages are powered by Yamaha.
