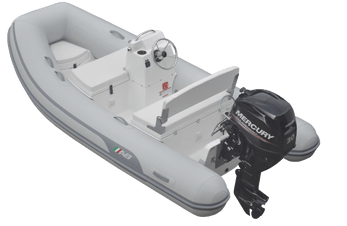

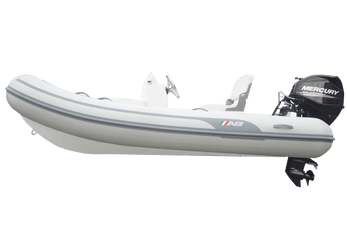

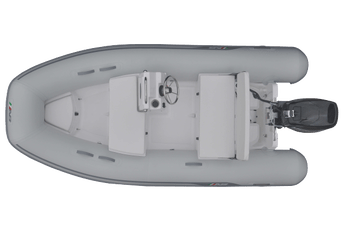

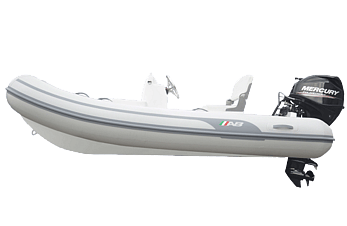

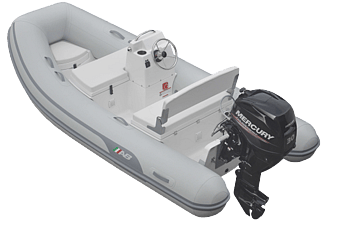

AB Mares 12 VSX

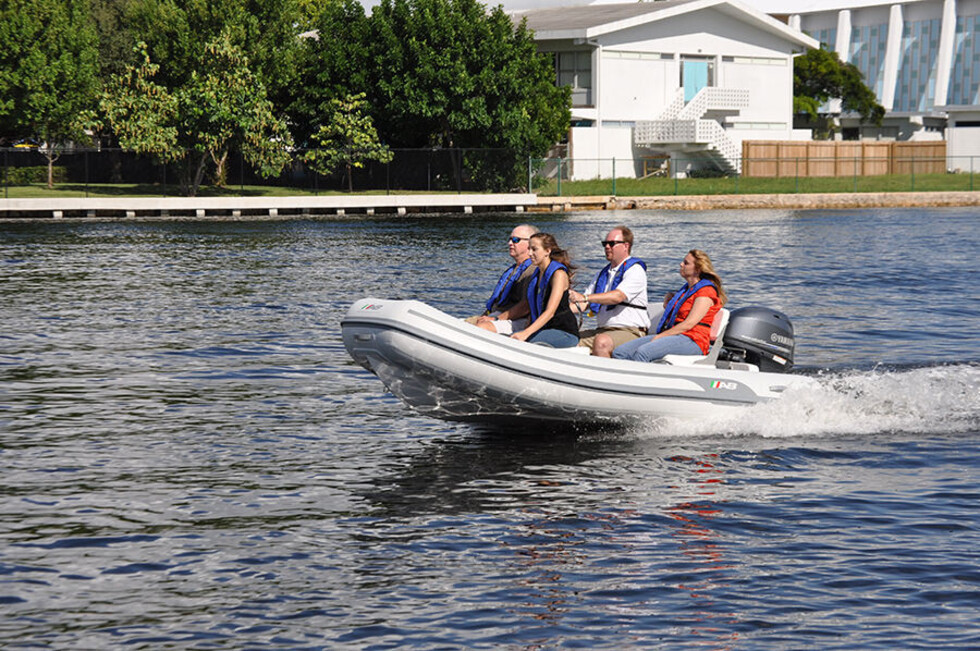

Tailored with a comfortable cushioned seating area, console with windshield, a roomy non-skid deck and a long list of standard features, the Mares 12 VSX is the ideal tender for family fun. It also includes an abundance of storage, offering a flip open rear seat and concealed bow locker. With four lifting points, it is also conveniently easy to haul on to davits or decks.

Standard Features

Hand Laid Fibreglass Deep “V” Hull

Stringer System Laminated into Hull

Diamond Shape Non-skid Deck

Plastic External Transom Plate

Aluminum Internal Transom Plate

1 Front & 2 Side Orca (CSM) Fabric Handles on Tubes

1 Port Inside Transom Orca (CSM) Fabric Handles on Tubes

2 Inside Bow Sets of Double Orca (CSM) Fabric Handles on Tubes

Raised Single Rub Rail

Push Push Plastic Non-Corrosive 2 Stage Inflation Valves

Orca (CSM) Five Layer Coated Fabric

Hand Pump

Orca (CSM) Five Layer Coated Hypalon Fabric

Hand Pump

Maintenance Kit

Owner's Manual

Closed Cell Foam Upholstery

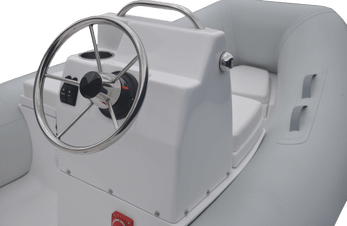

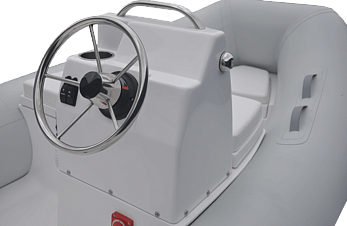

New Integrated Fibreglass Console with Cupholder, Lateral & Forward Seat with Cushion

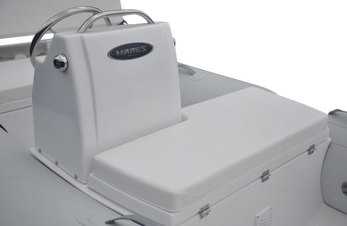

Integrated Stern Seat with Storage

2 Deck Drain

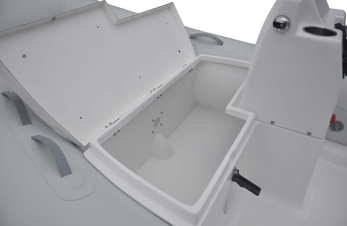

Bow Locker/Seat

Bow Hatch Cushion

Console Front Access Lid

LED Navigation Side Lights

360° White Light Navigation Pole

4 Stainless Steel Davit Lifting Points

Stainless Steel Bow Eye

Stainless Steel Tow Rings & Tie Downs

Stainless Steel Console Grab Rail

Hull Drain with Plug

2 Waterproof Rocker Switches with Circuit Breakers

Battery Box

Battery Switch

Fuel and Water Separator Filter

Automatic Bilge Pump 500 GPH

Mechanical Steering System

Stainless Steel Steering Wheel

Complete Tin Wiring & Heat Shrink Sealed Terminals

3 Layers Reinforced Seams

Specifications

Overall Length - 12' / 3.66m

Overall Beam - 6' / 1.82m

Inside Length - 8' 9'' / 2.67m

Inside Beam - 2' 9'' / 0.84m

Tube Diameter - 18'' / 0.46m

Number of Chambers - 3

Person Capacity - 5

Weight - 337lbs / 153kg

Recommended HP - 30HP

Maximum HP - 40HP

Shaft Length - 20’’ / 50.8cm

RDC Design Category - C
