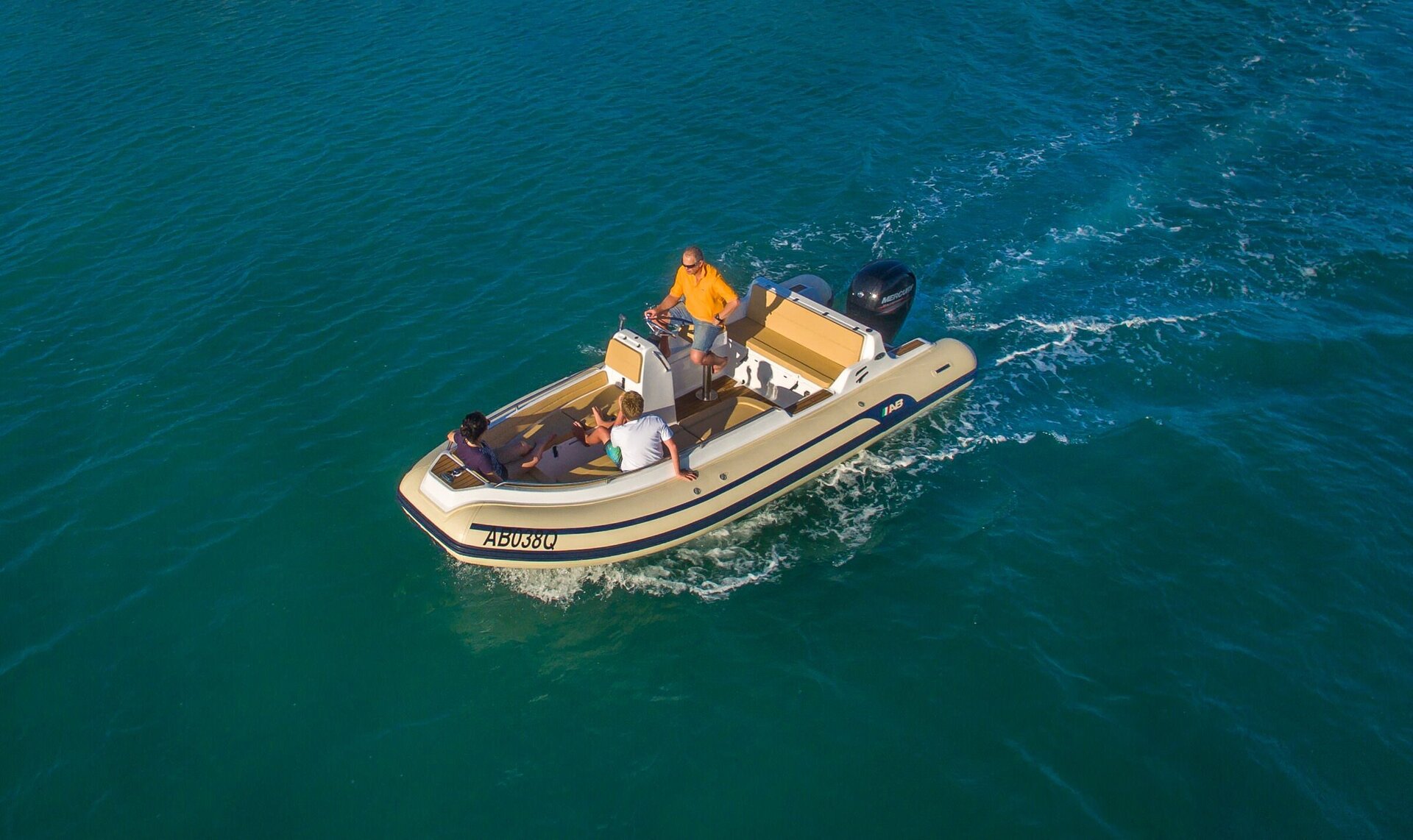

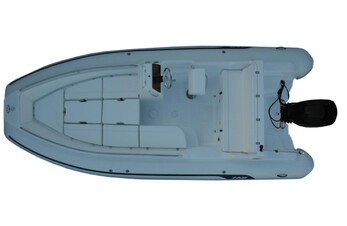

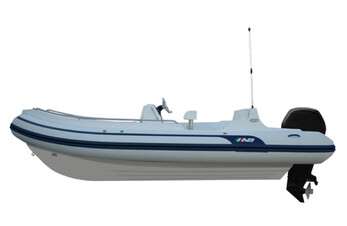

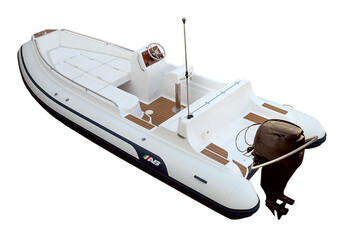

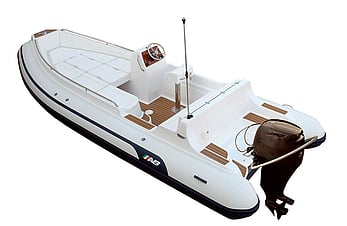

AB Nautilus 19 DLX

A perfect blend of thoughtful design, top-of-the-line features and elegant craftsmanship. Performance driven & beautifully crafted, our full-featured moulded-in deck Nautilus 19 DLX remains unparalleled in quality and style.

Our thoughtfully redesigned 19 DLX features the finest manoeuvrability and stylish finishing made to keep up with the adventure-seekers while providing comfort to those seeking relaxation. From the cushioned bow area to the convenient low helm station and its ergonomically positioned throttle, this handcrafted model, which delivers extra safety for children and pets, is specially designed for comfort and elegance.

Standard Features

Hand Laid Fibreglass Deep “V” Hull

Stringer System Laminated into Hull

Diamond Shape Non-skid Deck

Self Bailing Deck

Integrated Marine Grade Aluminium Fuel Tank

Marine Grade Aluminium Water Tank with Pump and Shower

Plastic External Transom Plate

Aluminum Internal Transom Plate

Splash well, Draining

Bow Rider Seating Style

One All Integrated Deck with Bow Front & Lateral Closed Cell Cushions

2 Front & 2 Side Orca (CSM) Fabric Handles on Tubes

Raised Double Rub Rail

Push Push Plastic Non-Corrosive 2 Stage Inflation Valves

Orca (CSM) Five Layer Coated Hypalon Fabric

Hand Pump

Maintenance Kit

Owner's Manual

Closed Cell Foam Upholstery

Port Boat Entrance Step with Diamond Shape Non-Skid

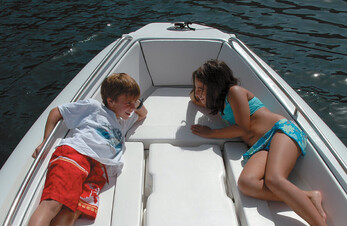

Bow Sunbathing Bed

Integrated Fibreglass Console

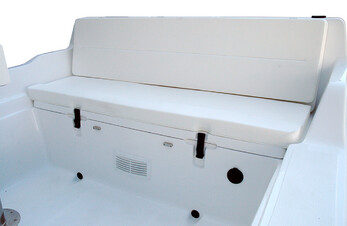

Moulded-In Stern Seat & Cushion with Armrest & Large Storage

2 Port, 2 Starboard Seats with Coolers and/or Lockers with Cushion

2 Deck Drains

Hull Drain with Plug

Bow Locker/Seat

Bow Hatch Cushion

Console Front Access Lid

Bow Step with Fold Down Stainless Steel Cleat & Running Lights

360° White Light Navigation Pole

Integrated Stainless Steel Bow Port & Starboard Hand Rails

Lateral Fold Down Stainless Steel Cleat

3 Stainless Steel Davit Lifting Points

Stainless Steel Console Grab Handle

Stainless Steel Tie Down & Towing Rings

Stainless Steel Bow Eye

Stainless Steel Transom Tie Down & Towing Rings

Deluxe Carbon Fiber Style Panel

6 Waterproof Rocker Switches with Circuit Breakers

Battery Box

Battery Switch

Fuel and Water Separator Filter

Sending Unit

Automatic Bilge Pump 750 GPH

Hydraulic Steering System

Stainless Steel Steering Wheel

Complete Tin Wiring & (Head) Heat Shrink Seal Terminals

4 Layers Reinforced Seams

Specifications

Overall Length - 19' / 5.79m

Overall Beam - 8'4" / 2.54m

Inside Length - 15’4’’ / 4.67m

Inside Beam - 4'5" / 1.35m

Tube Diameter - 22’’ / 0.56m

Number of Chambers - 5

Person Capacity - 12

Weight - 1,639lb / 745kg

Recommended HP - 115HP

Maximum HP - 150HP

Shaft Length - 25" / 63.5cm

Fuel Built-In Tanks - 67 gal / 254 L

Water Built-In Tanks - 20 gal / 76 L

RDC Design Category - C

Please note photos are indicative only and may show additions not included in standard features.

Errors and omissions excepted. Packages are powered by Yamaha.
