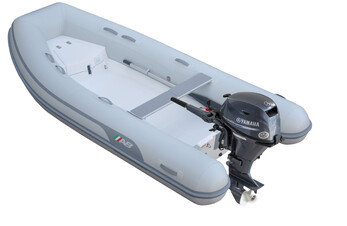

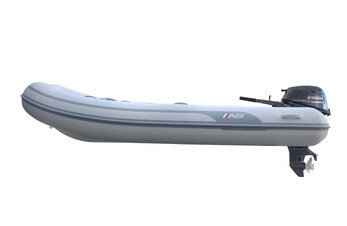

AB Navigo 12 VS

The most spacious fibreglass RIB on the market, easily customisable to fit your every need. With its unique forward-hull design, our full-featured Navigo 12 VS is the most spacious fibreglass RIB on the market. Ready for whatever comes its way, this is the ideal tender for a day trip to the beach, an adventurous morning of snorkelling, or simply transporting family and friends in style.

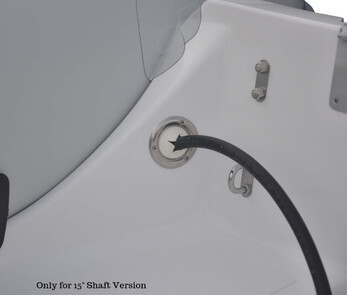

With its incredibly durable and dependable double fibreglass hull, everything about the Navigo 12 VS speaks to convenience and practicality. On the Navigo 12 VS, which is very popular among charter companies, portable fuel tanks can be fitted in the bow lockers with the fuel line hidden, leaving the deck free of obstructions. With four davit lifting points, an elegant, non-skid diamond patterned floor and a large bow locker, the Navigo 12 VS is one of our must-have RIBs.

Standard Features

Hand Laid Fibreglass Deep ā€œVā€ Hull

Stringer System Laminated into Hull

Bow Locker/Seat with Vent

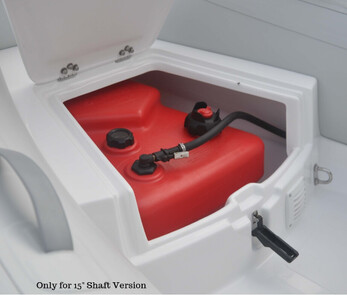

Bow Locker with Storage (15" Shaft version to Fit a 6 Gal Portable Fuel Tank)

Diamond Shape Non-Skid Deck

Plastic External Transom Plate

Aluminum Internal Transom Plate with Security Lip

Orca (CSM) Five Layer Coated Hypalon Fabric

3 Push Push Plastic Non-Corrosive 2 Stage Inflation Valves

Raised Double Rub Rail

Stainless Steel Bow Eye

4 Stainless Steel Davit Lifting Points

Stainless Steel Tow Rings & Tie Downs

Deck Condensation Plug

Deck Drain with Plug

1 Front & 2 Side Orca (CSM) Fabric Handles on Tubes

2 Inside Bow Sets of 2 Orca (CSM) Fabric Handles on Tubes

2 Inside Stern Single Orca (CSM) Fabric Handles on Tubes

3 Layers Reinforced Seams

Paddles with Aluminum Shaft

Paddle Holders

Removable Rowing Seat

Hand Pump

Maintenance Kit

Owner's Manual

Additional Air Retaining Chamber Under the Floor

Specifications

Overall Length - 12' / 3.66m

Overall Beam - 6ā€™ / 1.82m

Inside Length - 8' 9" / 2.67m

Inside Beam - 2' 9" / 0.84m

Tube Diameter - 18" / 0.46m

Number of Chambers - 3+1

Person Capacity - 6

Weight - 202lbs / 92kg

Recommended HP - 20HP

Maximum HP - 30HP

Shaft Length Option 1 - 15" / 38.1cm

Shaft Length Option 2 - 20" / 50.8cm

RDC Design Category - C

Please note photos are indicative only and may show additions not included in standard features.

Errors and omissions excepted. Packages are powered by Yamaha.
