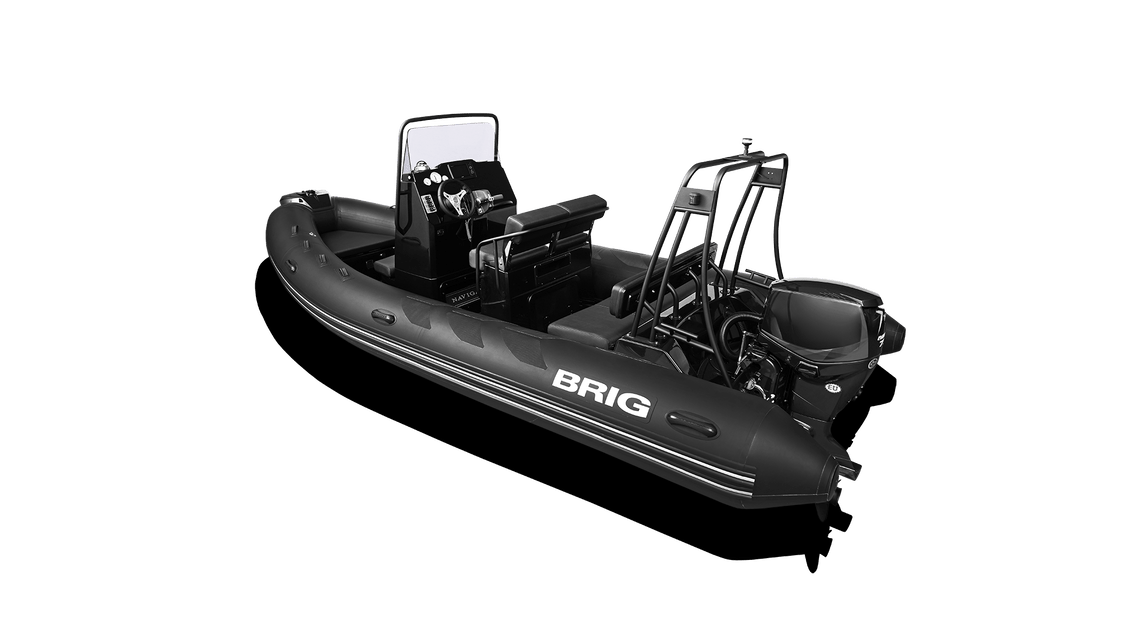

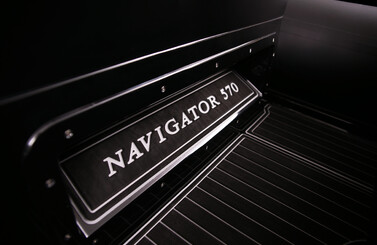

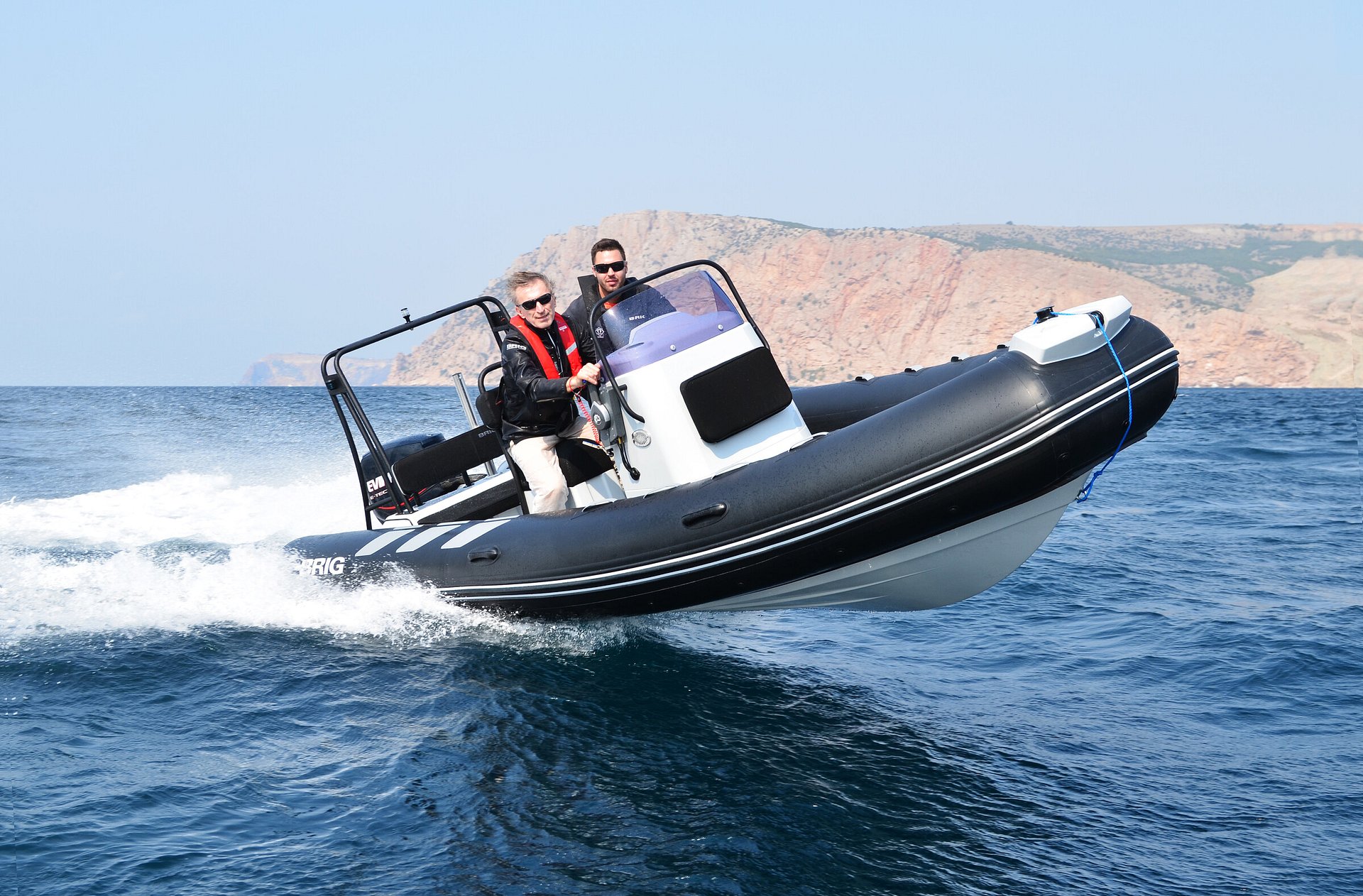

The Navigator 570 is a development of the hugely successful tried and tested Falcon 570. Using the proven hull and tube design of the Falcon 570 the Navigator boasts some clever new developments. The newly designed splash-back well incorporates a large rear watersports locker with bench seat over.

Standard Features

Deep V hull

Antiskid deck surface

Front and rear stowage lockers

Hull ventilation system

Twin self-bailing unit

Built in fuel tank with external deck filler

Front step plate

Front towing bow ring

Rear cleats (bollards)

Built-in davit lifting points

Rubbing strake

Safety handles & carrying handles

Two paddles & foot pump

Tube repair kit

Accessories bag

Owner’s manual

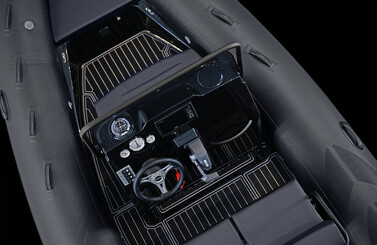

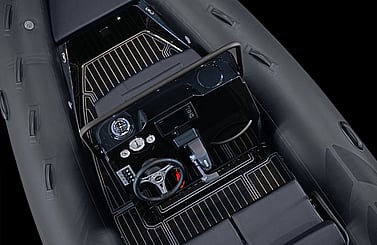

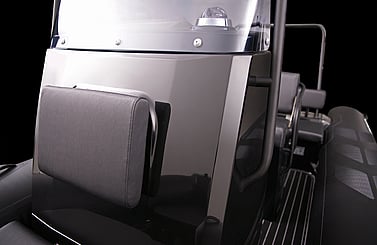

Steering console

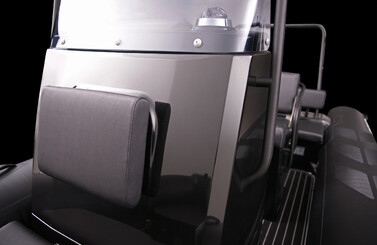

Pilot bolster seat

Steering system (mechanical)

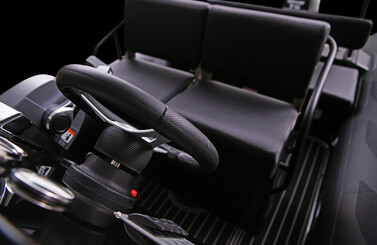

Steering wheel

Automatic bilge pump

Battery container

Battery isolation switch

Fuel gauge

Wake/ski towing point

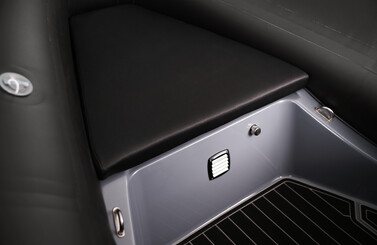

Front locker removable cushion

Rear cushion with soft back

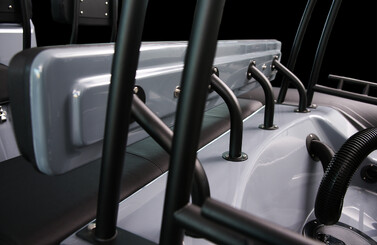

Stainless steel arch with navigation lights

Hypalon ORCA Fabric

Specifications

Length: 570 cm

Width: 230 cm

Height: 190 cm

Tube diameter: 50 cm

No. of chambers: 5

No. of persons: 9

Weight of empty boat: 480 kg

Fully equipped weight: 785 kg

Maximum load (rec.): 1040 kg

Minimum power: 75 HP

Recommended power: 90 HP

Maximum power: 120 HP

Design category: C

Fuel tank capacity: 98 L

Engine shaft length: 20"

Please note photos are indicative only and may show additions not included in standard features.

Packages are powered by Yamaha.
