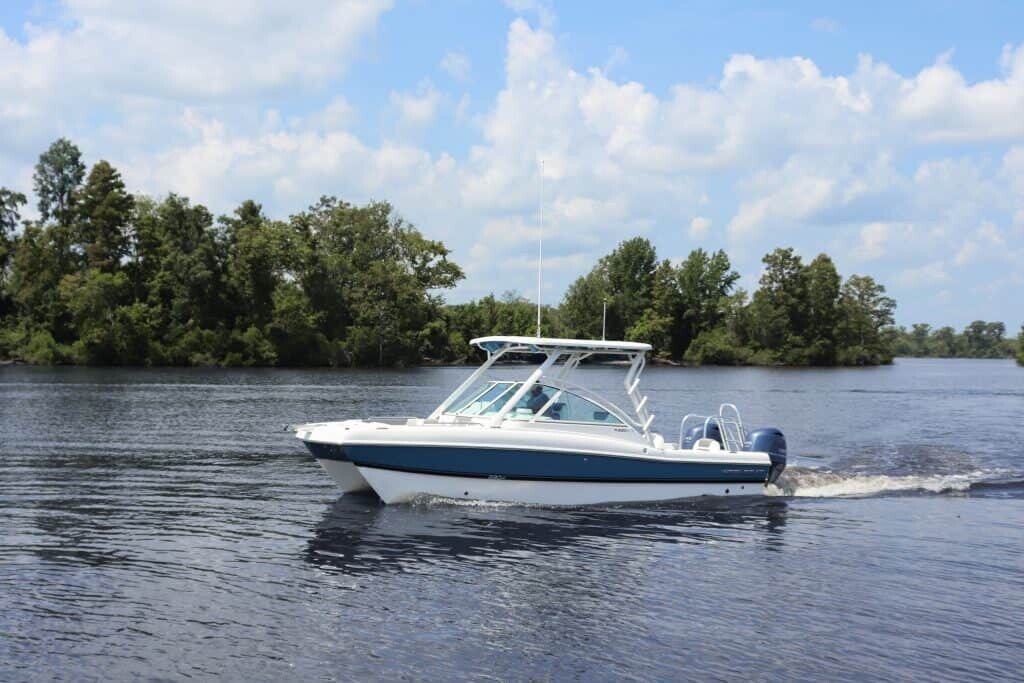

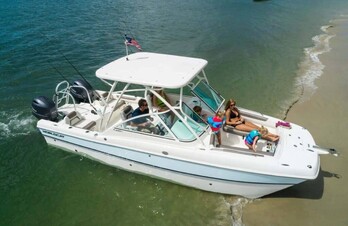

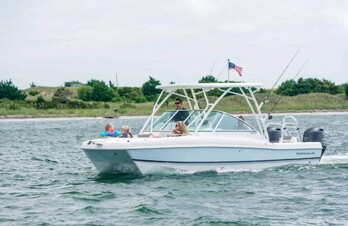

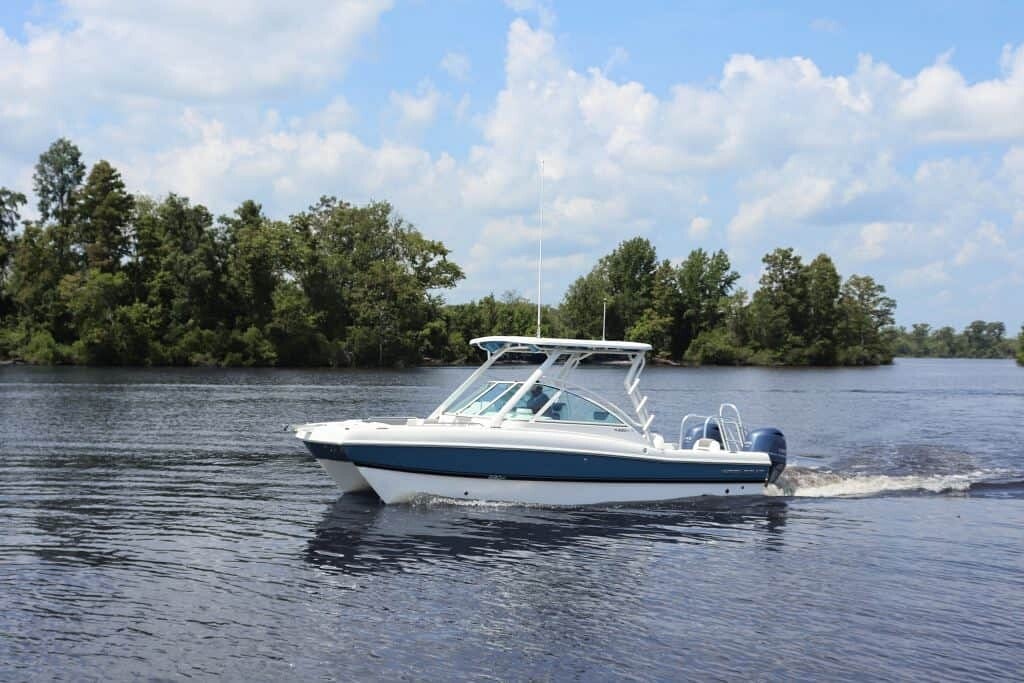

World Cat 230 Dual Console
The 230DC is the ideal boat for family outings, exploring new horizons, getting away from it all, and getting there in comfort. This mid-size dual console boat features World Cat’s famous smoother, more stable, drier ride, and it includes comfort features like a full-sized head enclosure, and seating for up to ten thanks to its big 8’6” beam.
Standard Features
Hull
- Self-bailing, non-skid fiberglass cockpit liner
- Heavy-duty rub rail with stainless steel insert
- Below-deck rigging tubes for electronics and additional batteries
Bow

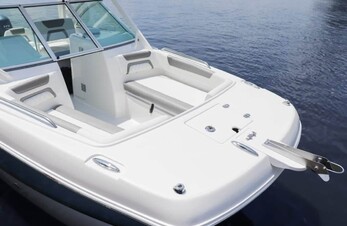

- Bow pulpit with anchor roller and rode storage locker

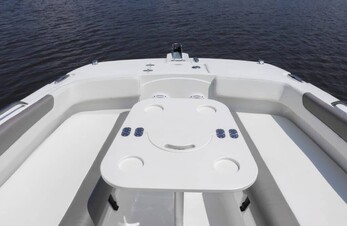

- Bow area cushioned seating for 4 adults with grab rails and 4 cup holders
- Port and starboard forward 150-quart insulated fish boxes with overboard drains
- 6 through-bolted stainless 8" pop-up cleats on deck
- Through-bolted stainless steel bow eye
Top

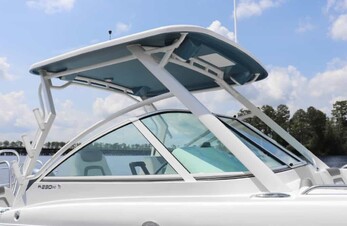

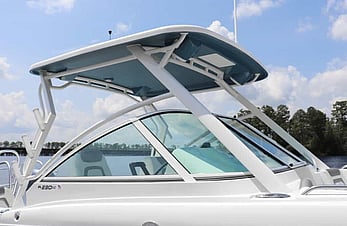

- Fiberglass hardtop with finished underside, powdercoated aluminum frame, overhead lights, rocket launchers, spreader lights and two additional JL Audio speakers

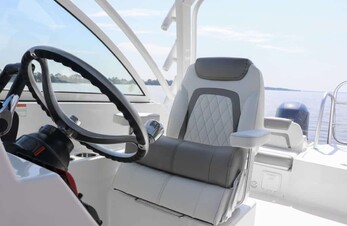

Helm
- Tilt-helm steering

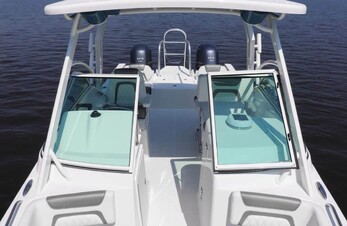

- 3-piece walk-through windshield

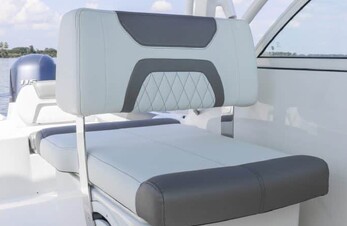

- Helm and passenger dual pedestal seats
- Portside console door with full-sized head compartment, solar vent, and light
- Marine head and holding tank
- Electronics mounting area for a 12-inch screen
- Dual ram hydraulic steering with a 15.5-inch stainless steering wheel and power knob
- Single Garmin GPSMAP 8610xsv 10" multi-touch widescreen Chartplotter / Sonar Combo, Airmar B150M transducer, dark-tinted acrylic dash, & 315 VHF with 8' antenna
- Fusion® True-Marine™ MS-RA205 Marine Stereo with 2 JL Audio speakers and Bluetooth
- Marine grade switch panel with waterproof rocker switches

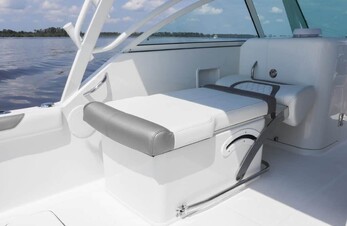

- Back-to-back port side companion lounge seating with storage
Stern
- Aluminum swim platform with fiberglass step and fold-up swim ladder with handrails
- 4 gunwale-mounted stainless steel rod holders
- 10-gallon fresh water system with pull-out shower
- Raw water washdown with on deck washdown fitting

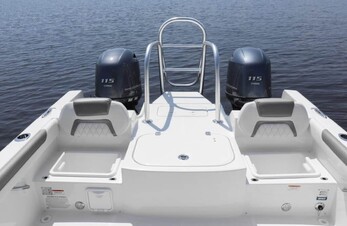

- Aft seats with removable cushions and storage under

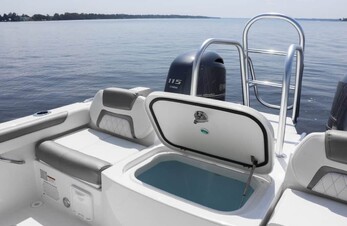

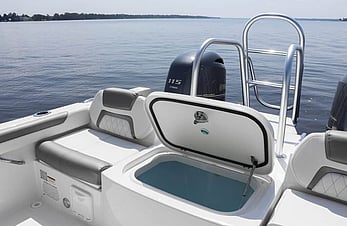

- 30-gallon livewell between aft seats, lighted with overboard drain and fiberglass lid
- Dual batteries with on/off parallel switch
- 2 net 44.5 gallon polyethylene fuel tanks
- 2 fuel/water filters
- 2 fuel fills with internal vents
- 2 1000-GPH automatic bilge pumps
Power
- Yamaha T/F 115XB Package
Specifications
LOA: 22’7″
Molded LOA: 22’7″
Beam: 8’6″
Draft: 11”
Gunwale Height: Aft 22”
Transom Height: 25”
Approx. Dry Weight: 4,900 lbs w/ twin 115’s
Max HP Rating: 230 HP (2 x 115 HP)
Fuel Capacity: 89 gal (2 x 44.5)
Livewell Capacity: 30 gal
Boat Capacity: 10 Person
Please note photos are indicative only and may show additions not included in standard features.
Errors and omissions excepted. Packages are powered by Yamaha.
