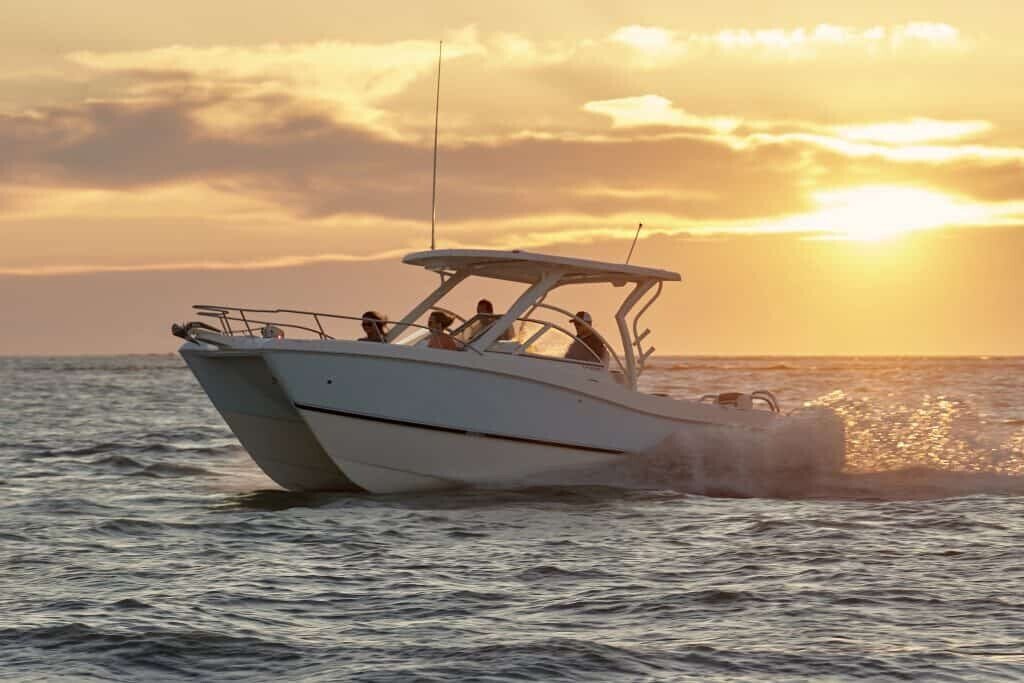

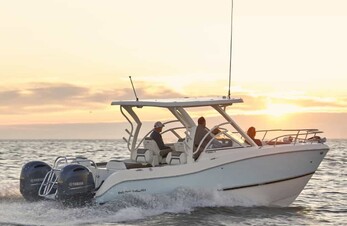

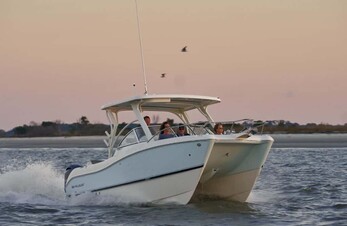

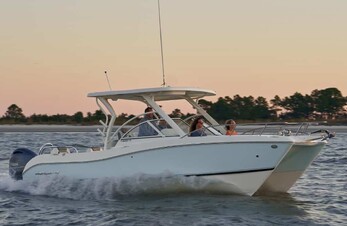

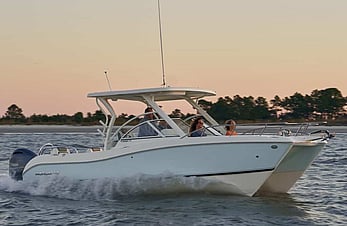

World Cat 255 Dual Console

When we designed the 255DC, we enhanced it with 25% more cockpit space than our previous model. It’s the roomiest mid-sized dual console you’ll find – with seating for 10. But, that’s not all: Whether fishing, cruising, diving, or entertaining, the 255DC features the kind of stable, smooth performance, shallow draft, and bow to stern quality you expect from a World Cat.

Standard Features

Bow

  • Pro Series free-fall windlass with 300′ line, 15′ chain, 14lb anchor, and foot switches at the deck
  • 316-grade stainless steel bow rail
  • Bow pulpit with roller and cleat
  • Port and starboard bow anchor lockers

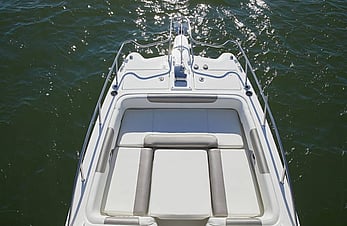

  • Forward sun lounge featuring port and starboard cushioned seats for 6 adults with wraparound coaming pad seat backs
  • Stainless steel cup holders

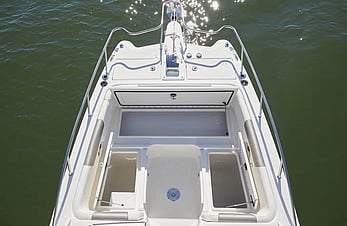

  • Large, lockable dry storage and rod storage box (starboard)
  • Large, lockable dry storage box (port)
  • Large, lockable dry storage box (center)
  • Large lockable dry storage compartment in front of helm console
  • Seating capacity of 10 people
  • Adjustable height bow table that converts to sun lounge with filler cushion

Helm

  • Fiberglass top with aluminum frame, overhead lights, rocket launchers, and spreader lights
  • Single Garmin GPSMAP 8612xsv 12" multi-touch widescreen Chartplotter / Sonar Combo, Airmar B150M transducer, dark-tinted acrylic dash, Garmin 315 VHF with 8' antenna
  • 3-piece safety glass walk-through windshield with companion way handrails

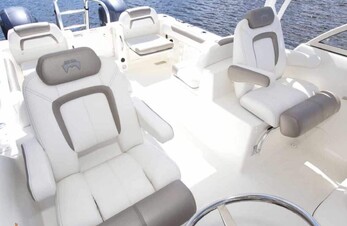

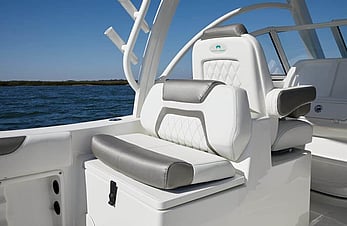

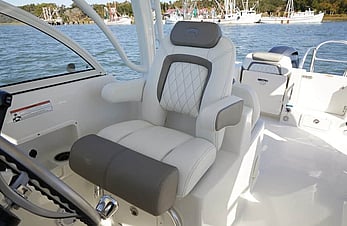

  • Helm and passenger dual custom seats with flip-up bolsters and recessed stainless steel cup holders
  • Ergonomic dash layout for a 12-inch screen
  • Fusion® MS-UD750 marine entertainment system with 4 JL Audio speakers, remote and Bluetooth
  • Power-assist steering with 15 1/2” stainless wheel
  • Starboard seatbox houses 30-gallon insulated livewell with a 1100-gph magnetic drive pump and overboard drain
  • Port seatbox houses 200-quart insulated fish box / cooler
  • Dual ram hydraulic steering

Head

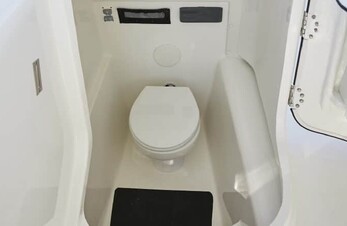

  • Enclosed lockable changing area and a freshwater electric pump-out head, 10-gallon holding tank and overboard discharge (portside console)

Stern

  • Walk-though transom with heavy-duty door
  • Battery management system with 2 Group 27 batteries
  • Integrated 2-bank battery charging system

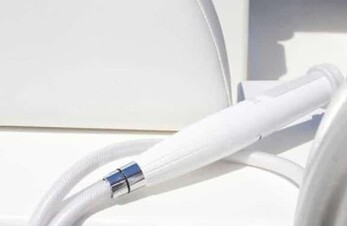

  • Pull-out transom fresh water shower

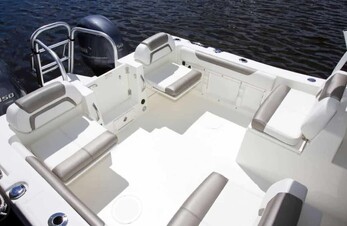

  • Dual aft fold-down seats with backrest cushions
  • 6 pull-up stainless steel cleats
  • 4 gunwale-mounted stainless steel rod holders/cup holders
  • Raw water washdown
  • User-friendly On-Ramp™ swim ladder and swim platform

Power

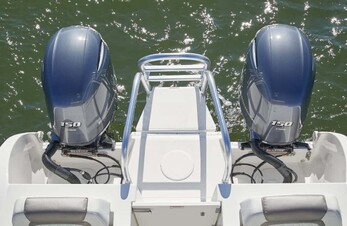

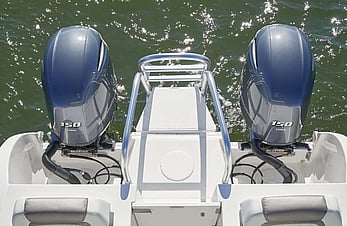

  • Yamaha F150XB Package

Specifications

LOA: 26′0”

LOA: w/o pulpit 24’6″

Beam: 8’6″

Hull Draft: 12″

Freeboard Aft: 25″

Transom Height: 25″

Fuel Capacity: 186 gal (2 x 93 gal)

Max HP Rating: 300 HP (2 x 150 HP)

Approx. Dry Weight:* 6,600 lbs w/ twin 150’s

Bridge Clearance: 8’6″

Cockpit Length: 48″

Freshwater Capacity: 10 gal

Wastewater Capacity: 10 gal

Seating: 10 people

Please note photos are indicative only and may show additions not included in standard features.

Errors and omissions excepted. Packages are powered by Yamaha.
