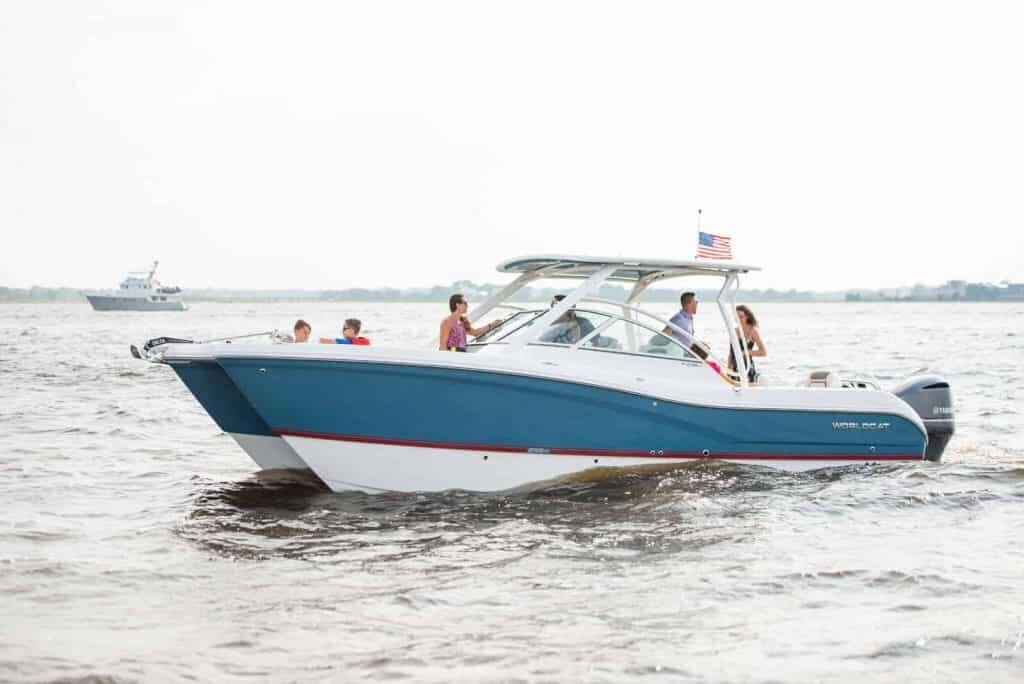

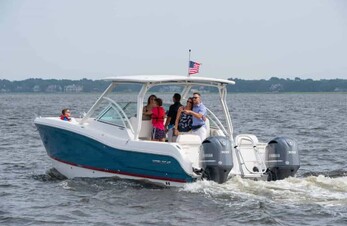

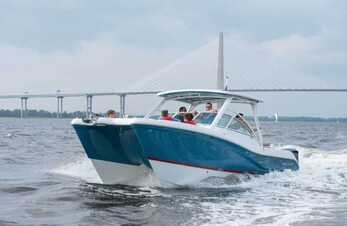

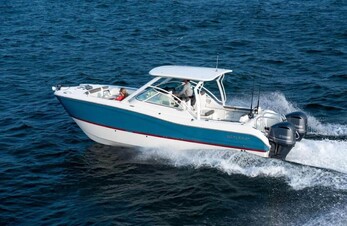

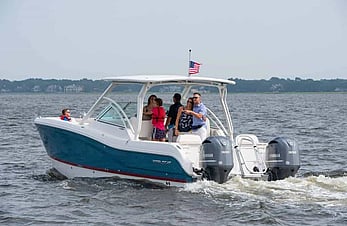

World Cat 296 Dual Console
The new 296DC brings you a smoother ride, shallower draft, and greater stability even in rough seas. And, while it’s built for comfort, it delivers plenty of speed. New features include a lower profile hardtop & frame, improved deck spacing, comfortable aft-facing softback seats with safety handrails, a 25-gallon livewell located in the port seat box and a 125-quart fish box located in the starboard seat box, updated dash and switch panel, USB outlets, and courtesy lighting in the bow. No matter what your watersports pleasure, this boat will deliver and then some.
Standard Features
Bow
- Molded-in bow pulpit with roller and cleats

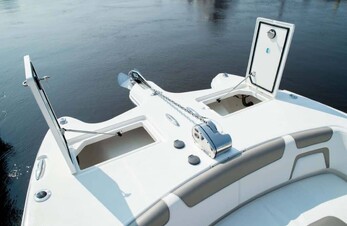

- Pro Series free-fall windlass with 300ʹ line, 15ʹ chain, 22 lb. polished S.S. anchor, and foot switches

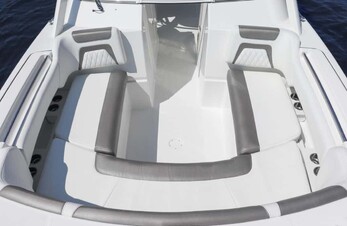

- Bow seating with cushioned backs for 6 adult
- Port and starboard recessed handrails
- (4) stainless steel cup holders and storage compartment
- Lockable dry storage compartment with rod racks for (6) rods accessible from the head (port box)
- Forward insulated 225 qt. fish box with overboard drain (starboard box)

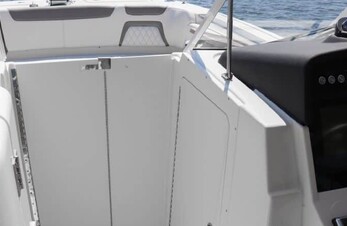

- Bi-fold weather door between the consoles
- (2) 500 gph forward bilge pumps
Head

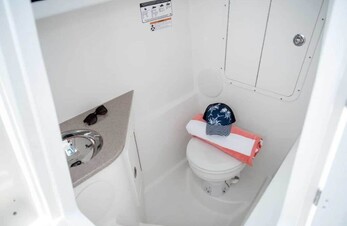

- Head / changing room with 23″ wide access door and standing headroom
- Marine head with a 15 gal. holding tank and overboard discharge
- Head enclosure vanity, mirror, and Corian® countertop with stainless steel sink. Fiberglass door has handrail and provides access to lockable rod locker
Helm
- Fiberglass top with surfboard edge and powdercoated frame, overhead lights, and spreader lights

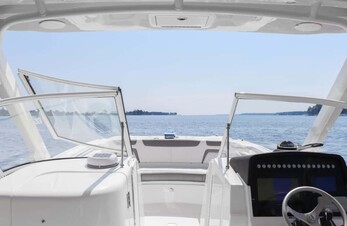

- Safety glass walk-through windshield with walk-through door latch
- Starboard console storage area with removable floor lids for access to (3) batteries and waste tank. Area also provides access to electronics & storage for the optional bow table

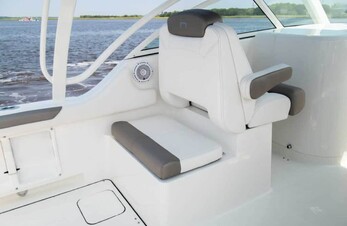

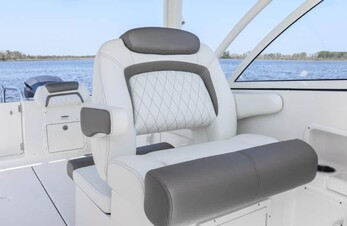

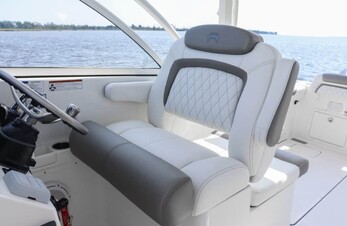

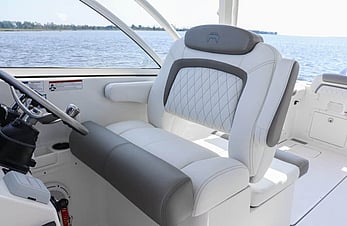

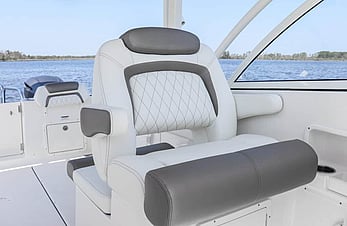

- Helm and passenger dual custom seats with nearby recessed stainless steel cup holders
- Helm seat has flip-up bolster

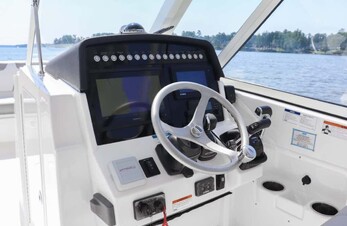

- Ergonomic dash layout capable of (1) 12ʺ screen
- Premium marine entertainment system with (4) JL Audio speakers, remote, and Bluetooth
- Integrated 3-bank battery charging system
- Power assisted hydraulic steering system
- 13 1/2ʺ stainless steel wheel with power knob
- Magnetic catches on head entry and walk-through doors

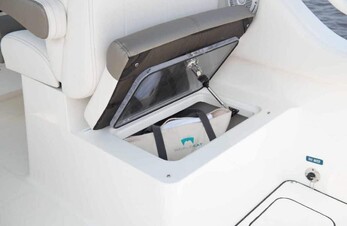

- Starboard seatbox with 150 qt. insulated fishbox / cooler and raw water washdown

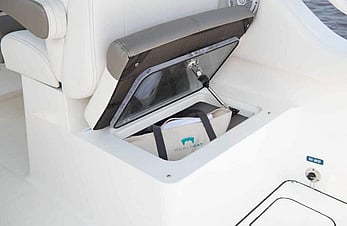

- Port seatbox houses 25 gal. insulated livewell with 1,100 gph magnetic drive pump, overboard drain, and a clear lid
Stern

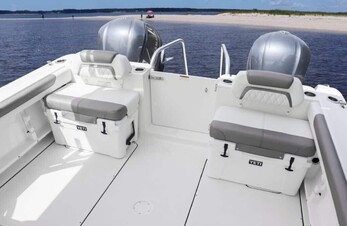

- Twin aft-facing seats on seatboxes with flip-down footrests for comfort
- Port and starboard sealed fuel-filter compartments for easy maintenance
- (6) pull-up stainless steel cleats
- (6) gunwale-mounted stainless steel rod holders/cup holders
- Additional rod holders on back legs of hardtop frame (3/side)
- YETI 65 qt. coolers w/ cushions & coaming pad bolster (port & starboard)
- Walk-though transom with heavy-duty door, bait prep, and tool storage
- Fresh water transom shower with 35 gal. water tank

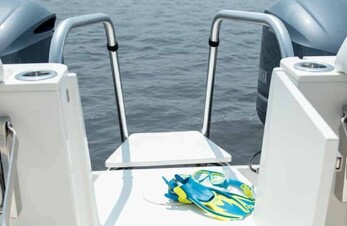

- User-friendly On-Ramp™ swim ladder and swim platform
- (6) Flush mount fender holders
Yamaha Power Matched
- Yamaha 300 HP 4-strokes (Yamaha gray or Yamaha pearlescent white)
Specifications
Length: 29ʹ 1ʺ
Beam: 9ʹ 6ʺ
Draft: 15ʺ
Freeboard Aft: 27″
Transom Height: 25″
Dry Weight w/ Power (approx): 8,900 lbs
Max HP Rating: 600 HP (2 x 300 HP)
Fuel Capacity: 233 gal (2 x 116.5 gal)
Livewell Capacity: 25 gal
Freshwater Capacity: 33 gal
Wastewater Capacity: 15 gal
Bridge Clearance*: 8ʹ 10ʺ
Cockpit Length: 65ʺ
Passenger Capacity: 12
Please note photos are indicative only and may show additions not included in standard features.
Errors and omissions excepted. Packages are powered by Yamaha.
